Phenolic Fabric Wear Rings Scratch Resistant Turquoise Ready Rings

  • 1
  • 2
  • 3

Model Number : WR

Material : Fabric Reinforced Composite Materials

Supply Diameter : 16mm ~ 200mm

MOQ : 20pcs

Place of Origin : China(mainland)

Payment Terms : T/T

Seal Type : Wear Rings / Guide Elements

Certification : ISO9001, IATF16949, ISO14001, ISO45001

Type : Guide Rings

Color : Turquoise

Contact Now

Phenolic Fabric Wear Rings Turquoise Ready Rings Orkot C380

The C380 Guide Strip is a turquoise wear strip of phenolic resin fabric reinforcement for pistons or rods. Designed for high radial load applications, this is a critical guiding element that also protects seals from the destructive Diesel Effect. It ensures smooth, dry running with zero stick-slip (no-creeping) phenomena. It is engineered to absorb vibration and heavy radial forces, preventing metal-to-metal contact. We supply standard slydring which's preformed to the exact intended diameter within φ200mm.

Technical data

Pressure Speed Temperature Media
- 1m/s – 50° C ~ + 130° C hydraulic mineral oils, water, bio-oil, etcl.

Advantages

  • Excellent wear resistance

  • Superior dimensional stability

  • Scratch-resistant

  • Excellent insulation properties. Highly resistant to galvanic corrosion in working media.

  • Good elasticity. Suitable for high-impulse vibration environments.

  • Self-lubricating. Can be used in oil-free applications

  • Chemicals resistance

  • Low coefficient of friction.

  • Easy to install

Application Areas

  • Hydraulic actuators
  • Construction Machinery
  • Forestry equipment
  • Injection Moulding Machin
  • Mining machinery,
  • Metallurgical machinery
  • Water locks
  • Marine engineering

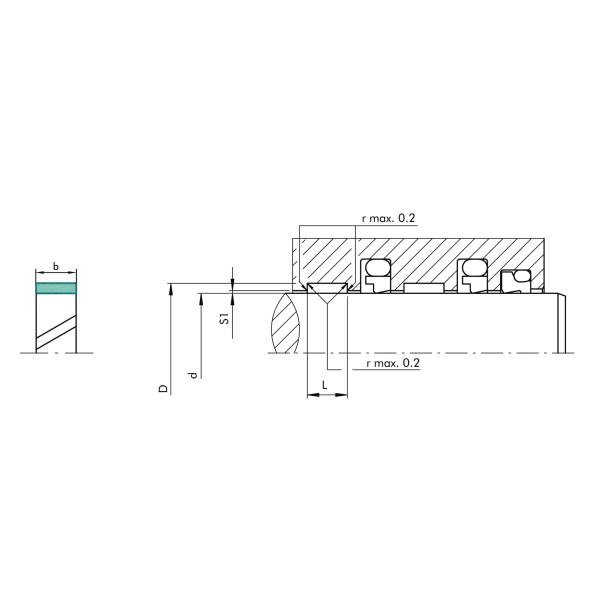

Installation Dimensions

Phenolic Fabric Wear Rings Scratch Resistant Turquoise Ready Rings​

P/N d D b L
WR16*19.1*5.4 16 19.1 5.4 5.6
WR20*25*5.4 20 25 5.4 5.6
WR22*27*5.4 22 27 5.4 5.6
WR25*30*5.4 25 30 5.4 5.6
WR35*40*5.4 35 40 5.4 5.6
WR36.9*40*5.4 36.9 40 5.4 5.6
WR40*45*9.5 40 45 9.5 9.7
WR45*50*14.8 45 50 14.8 15
WR50*45*14.8 50 45 14.8 15
WR50*45*9.5 50 45 9.5 9.7
WR50*55*5.4 50 55 5.4 5.6
WR56*61*14.8 56 61 14.8 15
WR56*61*9.5 56 61 9.5 9.7
WR58*63*9.5 58 63 9.5 9.7
WR60*65*5.4 60 65 5.4 5.6
WR63*58*14.8 63 58 14.8 15
WR63*58*5.4 63 58 5.4 5.6
WR63*58*9.5 63 58 9.5 9.7
WR63*68*9.5 63 68 9.5 9.7
WR65*60*9.5 65 60 9.5 9.7
WR70*65*9.5 70 65 9.5 9.7
WR70*75*14.8 70 75 14.8 15
WR70*75*9.5 70 75 9.5 9.7
WR75*70*14.8 75 70 14.8 15
WR75*80*5.4 75 80 5.4 5.6
WR80*75*14.8 80 75 14.8 15
WR80*75*9.5 80 75 9.5 9.7
WR80*85*14.8 80 85 14.8 15
WR80*85*19.5 80 85 19.5 20
WR80*85*9.5 80 85 9.5 9.7
WR85*80*9.5 85 80 9.5 9.7
WR85*90*14.8 85 90 14.8 15
WR90*85*14.8 90 85 14.8 15
WR90*85*9.5 90 85 9.5 9.7
WR90*95*14.8 90 95 14.8 15
WR90*95*19.5 90 95 19.5 20
WR90*95*5.4 90 95 5.4 5.6
WR90*95*9.5 90 95 9.5 9.7
WR100*105*19.5 100 105 19.5 20
WR100*105*9.5 100 105 9.5 9.7
WR100*95*14.8 100 95 14.8 15
WR100*95*9.5 100 95 9.5 9.7
WR110*105*14.8 110 105 14.8 15
WR110*105*9.5 110 105 9.5 9.7
WR110*115*14.8 110 115 14.8 15
WR110*115*5.4 110 115 5.4 5.6
WR110*115*5.4 110 115 5.4 5.6
WR110*115*9.5 110 115 9.5 9.7
WR115*110*9.5 115 110 9.5 9.7
WR120*115*19.5 120 115 19.5 20
WR120*115*9.5 120 115 9.5 9.7
WR120*125*5.4 120 125 5.4 5.6
WR120*125*6.1 120 125 6.1 6.3
WR125*120*14.8 125 120 14.8 15
WR125*120*9.5 125 120 9.5 9.7
WR125*130*14.8 125 130 14.8 15
WR130*125*29.5 130 125 29.5 30
WR130*125*9.5 130 125 9.5 9.7
WR140*135*14.8 140 135 14.8 15
WR140*135*5.4 140 135 5.4 5.6
WR140*135*9.5 140 135 9.5 9.7
WR150*145*5.4 150 145 5.4 5.6
WR150*145*9.5 150 145 9.5 9.7
WR150*155*14.8 150 155 14.8 15
WR160*155*9.5 160 155 9.5 9.7
WR180*175*9.5 180 175 9.5 9.7
WR180*185*24.5 180 185 24.5 25
WR190*185*14.8 190 185 14.8 15
WR190*195*24.5 190 195 24.5 25
​
