Hunger GGDI Hydraulic Double Acting Rod Seals / Compact Inside Sealing

  • 1
  • 2
  • 3

Diameter Range : 20mm~1500mm

Temperature : -30℃ ~ +100℃

Pruduct Name : Hunger GGDI

Certification : ISO9001, IATF16949, ISO14001, ISO45001

Payment Terms : T/T

Place of Origin : China(mainland)

Material : NBR + PTFE Bronze 40% + POM

Seal Type : Rod Seals / Inside Sealing

MOQ : 10

Model Number : GGDI

Contact Now

Hunger GGDI Hydraulic Rod Seal Double Acting Sealing

The GGDI is a compact rod seal in hydraulic systems, consisting of a rubber o-ring, a PTFE-bronze slide ring and two L-shaped support rings. The slide ring provides the sealing function, being pressed against the rod by the o-ring. And the two support rings provide guiding and back-up functions, to ensure the sealing environment.

Technical data

GGDI Profile Material O-ring ① Slide ring ② L-rings ③
Hunger GGDI Hydraulic Double Acting Rod Seals / Compact Inside Sealing
　
Standrad NBR PTFE-Bronze-Compound POM, PA
Special (upon request) HNBR, FKM PTFE-Carbon/graphite -compound TPE

Pressure Speed Temperature Media
0~45MPa 1m/s

–30° C / +100° C

 hydraulic mineral oils, water based fluids and modified form with other fluids.

Advantages

  • Anti-extrusion design
  • High wear resistance
  • Easy installation with cut support rings and guide element
  • Excellent sliding characteristics
  • Low friction

Applications

  • Metallurgy
  • Hydraulic Presses
  • Mining
  • Offshore
  • Heavy-duty Construction Machinery

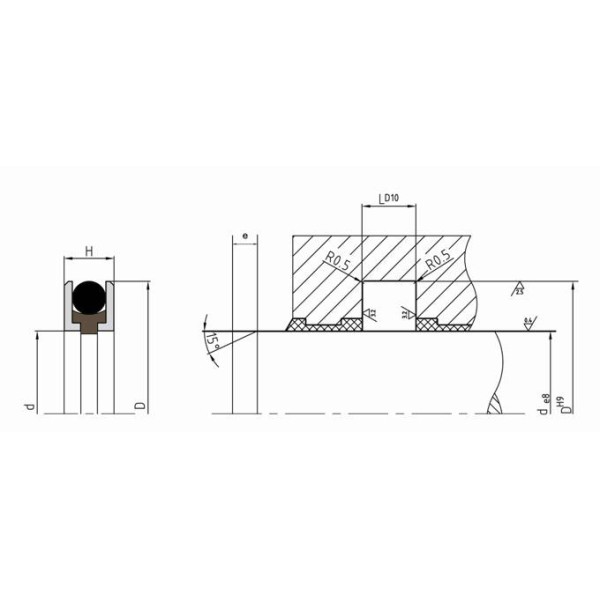

Specification

Hunger GGDI Hydraulic Double Acting Rod Seals / Compact Inside Sealing

ø-range e d e8 D H9 L D10 H
20-56 6 22-39 d+7.2 4 3.5
60-100 7 40-79 d+10.0 5 4.5
105-290 10 80-100 d+13.8 7.5 7
300-630 15 >100-250 d+20.0 10 9.5
>250-600 d+30.0 15 14.5
>600 d+40.0 20 19.5

P/N d e8 D H9 H L D10 e
GGDI0220 22 29.2 3.5 4 6
GGDI0250 25 32.2 3.5 4 6
GGDI0280 28 35.2 3.5 4 6
GGDI0300 30 37.2 3.5 4 6
GGDI0320 32 39.2 3.5 4 6
GGDI0350 35 42.2 3.5 4 6
GGDI0360 36 43.2 3.5 4 6
GGDI0400 40 50 4.5 5 6
GGDI0420 42 52 4.5 5 6
GGDI0450 45 55 4.5 5 6
GGDI0500 50 60 4.5 5 6
GGDI0550 55 65 4.5 5 6
GGDI0560 56 66 4.5 5 6
GGDI0600 60 70 4.5 5 7
GGDI0630 63 73 4.5 5 7
GGDI0650 65 75 4.5 5 7
GGDI0700 70 80 4.5 5 7
GGDI0720 72 82 4.5 5 7
GGDI0750 75 85 4.5 5 7
GGDI0800 80 93.8 7 7.5 7
GGDI0850 85 98.8 7 7.5 7
GGDI0900 90 103.8 7 7.5 7
GGDI0950 95 108.8 7 7.5 7
GGDI1000 100 113.8 7 7.5 7
GGDI1050 105 125 9.5 10 10
GGDI1100 110 130 9.5 10 10
GGDI1150 115 135 9.5 10 10
GGDI1200 120 140 9.5 10 10
GGDI1250 125 145 9.5 10 10
GGDI1300 130 150 9.5 10 10
GGDI1400 140 160 9.5 10 10
GGDI1500 150 170 9.5 10 10
GGDI1600 160 180 9.5 10 10
GGDI1650 165 185 9.5 10 10
GGDI1700 170 190 9.5 10 10
GGDI1800 180 200 9.5 10 10
GGDI1900 190 210 9.5 10 10
GGDI2000 200 220 9.5 10 10
GGDI2200 220 240 9.5 10 10
GGDI2250 225 245 9.5 10 10
GGDI2300 230 250 9.5 10 10
GGDI2400 240 260 9.5 10 10
GGDI2500 250 270 9.5 10 10
GGDI2600 260 290 14.5 15 10
GGDI2800 280 310 14.5 15 10
GGDI2900 290 320 14.5 15 10
GGDI3000 300 330 14.5 15 15
GGDI3200 320 350 14.5 15 15
GGDI3500 350 380 14.5 15 15
GGDI3600 360 390 14.5 15 15
GGDI3800 380 410 14.5 15 15
GGDI4000 400 430 14.5 15 15
GGDI4150 415 445 14.5 15 15
GGDI4200 420 450 14.5 15 15
GGDI4250 425 455 14.5 15 15
GGDI4500 450 480 14.5 15 15
GGDI4800 480 510 14.5 15 15
GGDI5000 500 530 14.5 15 15
GGDI5500 550 580 14.5 15 15
GGDI5600 560 590 14.5 15 15
GGDI6000 600 630 14.5 15 15
GGDI6300 630 670 19.5 20 15
GGDI6500 650 690 19.5 20 15
GGDI6800 680 720 19.5 20 15
GGDI7000 700 740 19.5 20 15
GGDI7200 720 760 19.5 20 15
GGDI7500 750 790 19.5 20 15
GGDI8000 800 840 19.5 20 15
GGDI8500 850 890 19.5 20 15
GGDI9000 900 940 19.5 20 15
GGDI9500 950 990 19.5 20 15
GGDI-X1000 1000 1040 19.5 20 15
  • For further dimensions on request.
